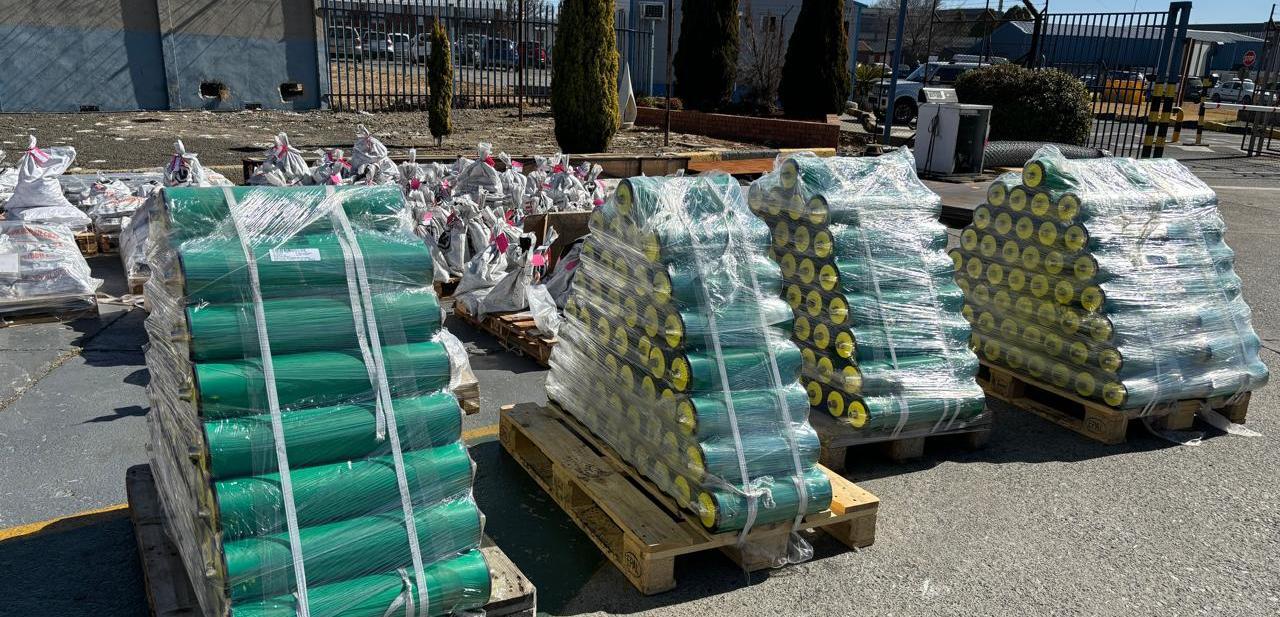

YIGA-P ROLLERS
Improve Safety
▪ Less Change outs / Idler Changes
▪ Lower human interface / Lower Manpower requirement
▪ Less conveyor stoppages/down time
▪ Less risk of belt damage
Save Money
▪ Save maintenance costs
▪ Save operating costs
Improve system availability
▪ Fewer breakdowns
Range available: The idler are available in 127 mm and 152 mm diameter, Series 25

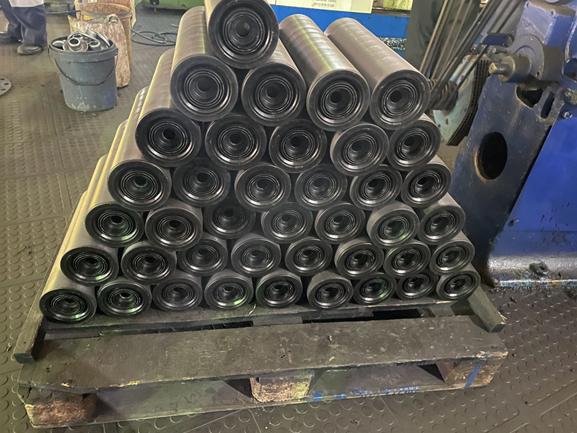

STEEL-HYBRID IDLER
▪ Roller - 4 mm Steel tube.
▪ End cap / Bearing housing - 30 % Glass filled Nylon
▪ Flinger - 30 % Glass filled Nylon with integrated labyrinth seal.
▪ Bearings - 6205 2RS C3 (One on each side)
▪ Shaft - 25 mm steel - Tin plated.
Industry Focused Prodcuts

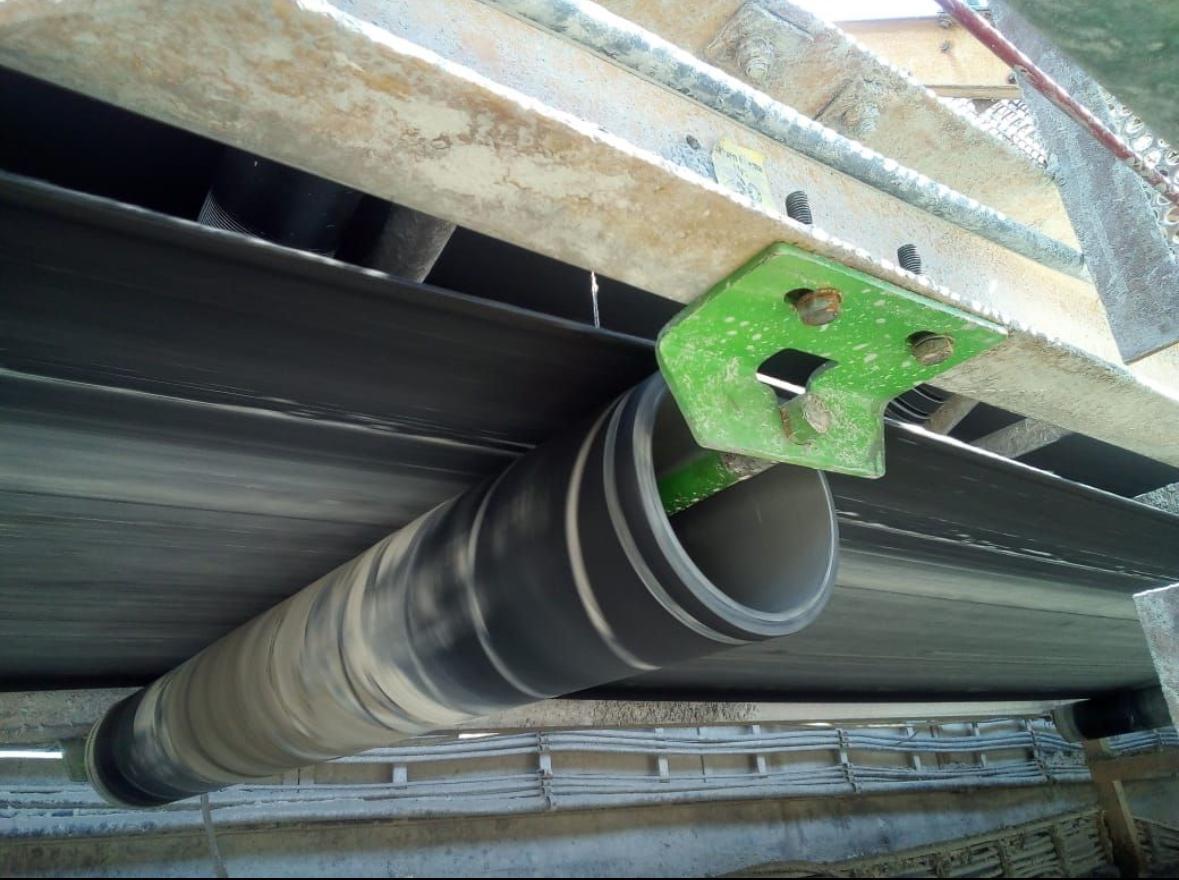

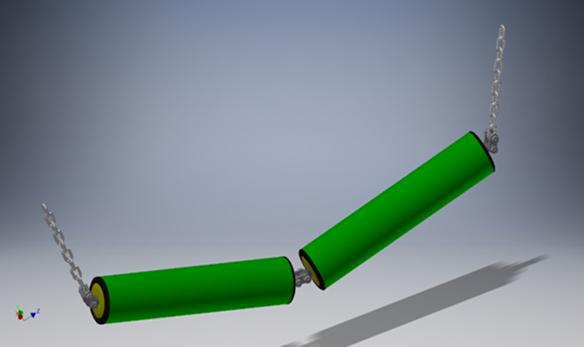

TUBE CONVEYOR IDLERS
▪ These idlers are used in tube-conveyors applications.
▪ The biggest advantage of these idlers is the fact that they cannot cut the belt. Similar
idlers produced from steel develop sharp edges and will eventually cut the belt.
▪ Thousands if these idlers are also used as guide idlers to keep the belt from sliding to
one side and prevent spillage.
The idler are available in 127 mm and 152 mm diameter, Series 25
Also Available: Anti-rollback HDPE idler

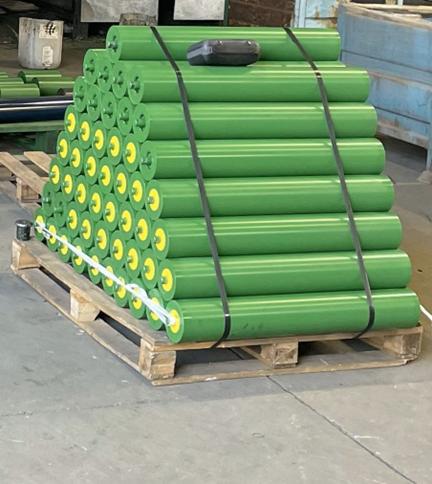

HDPE IDLER
▪ Roller - 12mm HDPE tube
▪ Idler with gauge length of 546mm and longer will be reinforced with a 3 mm steel tube.
▪ End cap / Bearing housing - Polypropylene
▪ Flinger - HDPE with integrated labyrinth seal.
▪ Bearings - 6205 2RS C3 (One on each side)
▪ Shaft - 25 mm steel - Tin plated.
▪ SABS 0123 - The control of undesirable static electricity.
Industry Focused Prodcuts

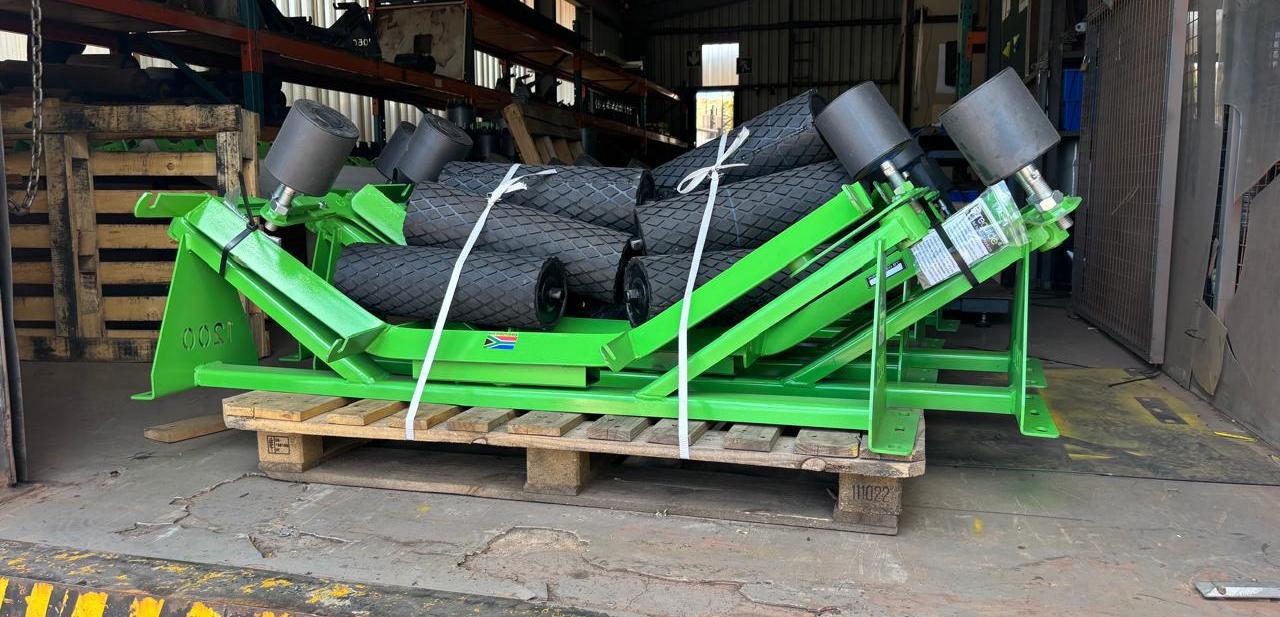

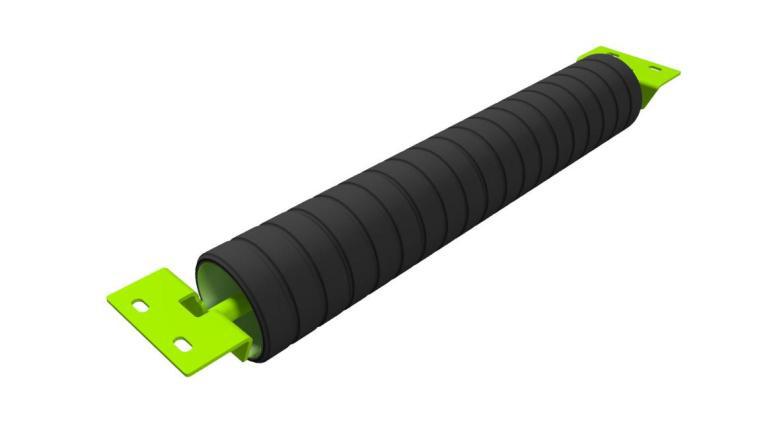

IMPACT ROLLERS
Impact rollers provide absorption in impact loading areas to protect the belt.
Roller diameter (mm) and (Shaft series (mm))
▪ 133 and ( 25, 30)
▪ 159 and (25, 30, 35, 40)
▪ 178 and (30, 35, 40)
▪ 219 and ( 50)
Industry Focused Prodcuts
IMPACT BARS
▪ Nylocomp Impact Bars are used in heavy duty applications at conveyor belt loading
points.
▪ Our Impact Bars are designed to sit directly underneath the conveyor belt.
▪ The polyethylene top allows the belt to run over it with minimal friction while the thick
block of rubber takes the energy out of the material at these points.
▪ Impact Bars are manufactured from a cast aluminum T-slotted base which is covered in a solid block of 60 shore hard rubber with a 10mm polyethylene top.
Industry Focused Prodcuts

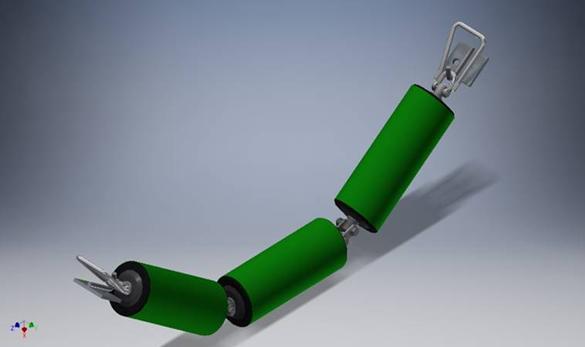

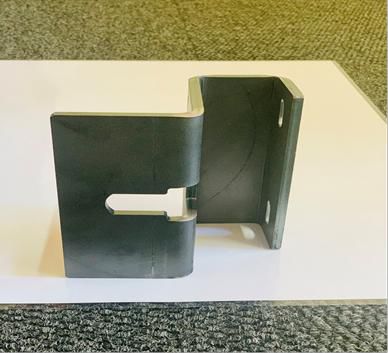

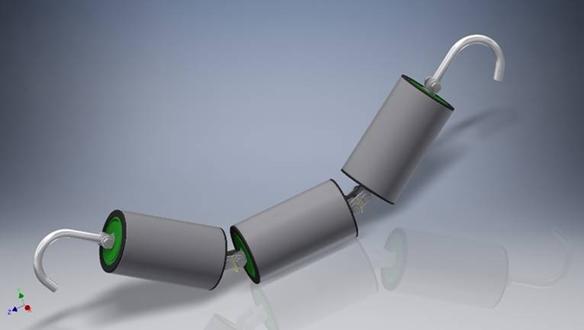

FRAMES: FOOT MOUNTING & TROUGHNG
▪ Nylo Comp manufactures a large variety of idler design configurations according to industry
standards such as SANS 1313, DIN or CEMA or according to customer requirements.
▪ Frame configuration can be as per standards or customized to meet client specific needs.
Frames are engineered to ensure deflection and load limitation, optimal price and ease of
use.
▪ Frames are manufactured in dedicated factories, using advanced machinery such as plasma cutters, bend press brake and robotic welding machines, to ensure high quality products in large volume.
Industry Focused Prodcuts
CONVEYOR SCRAPERS
▪ Our scrapers can be installed within 25 min and reduces production loss.
▪ Blade replacements is done in 10min with only two bolts. It has an internal spring system that is sealed off from water, dust and other elements.
▪ Our maintenance team also controls spillage to minimize housekeeping and down time.
▪ We complete a conveyor survey, fault finding and tracking advice.
Our Services
Unleashing the Power of Our Services
24 Hour splicing service (Hot & Cold Splice)
Lagging of pulley’s On Site and Off Site
24 Hour Conveyor Belt repairs
Belt Clips & super screws installation

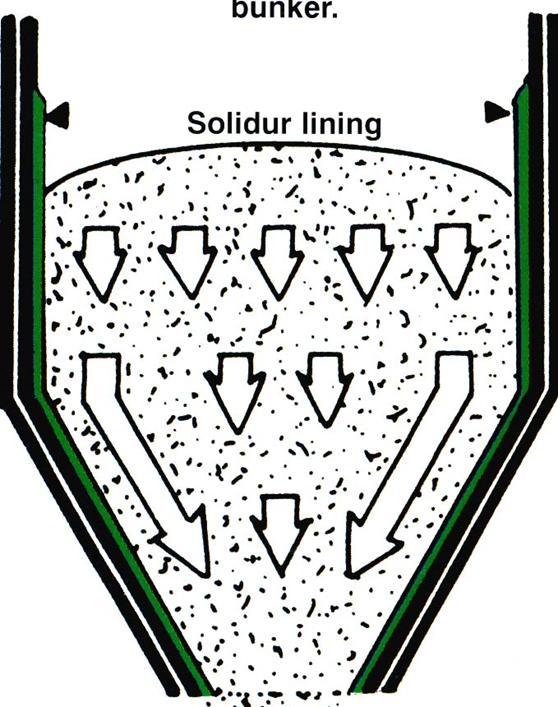

Transfer and storage Bin Wear Liners
